SPECIFICATIONS



Brand Name: BOAVISION



High Definition: 8.0 Megapixels

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows 7

Supported Operating Systems: Windows XP

Lens (mm): 4.7-94mm

Style: Dome Camera

Connectivity: IP/Network Wireless

Installation: Side

Minimum Illumination(Lux): 0.05 Lux /0 Lux(IR on)

Scene: Indoor and outdoor

Color Night Vision: No

Megapixels: 8MP

Storage: None

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 80m

Certification: CE

Dimensions (L x W x D)(mm): 185*195*250mm

Color: WHITE

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

Movement Range(Tilt): Other

is_customized: Yes

Model Number: HX-W54F5MP/HX-4G54F5MP/HX-W54F8MP/HX-4G54F8MP/HX-W54F8MP-P

Supported Mobile Systems: IOS

Supported Mobile Systems: Android

Smart home platform: Other

AI Functions: Human Detection

IP Rating: IP66

Special Features: Waterproof / Weatherproof

App name: Other

TF Card: None

Digital Zoom: Other

Power Supply(V): 12V 3A

Rechargeable Battery Capability: Other

Audio Output: 1CH RCA

Power Consumption(W): 12W

Sensor: CMOS

Sensor Brand: Sony/索尼

Outdoor Camera 8MP 5MP 4G Sim Card WIFI POE AI Auto Tracking Operating Temperature: -30°-60°

Outdoor Camera 8MP 5MP 4G Sim Card WIFI POE AI Auto Tracking Shell Material: Metal

Outdoor Camera 8MP 5MP 4G Sim Card WIFI POE AI Auto Tracking Power Supply: Normal

Outdoor Camera 8MP 5MP 4G Sim Card WIFI POE AI Auto Tracking Viewing Angle : 70°

Optical Zoom: Other

Outdoor Camera 8MP 5MP 4G Sim Card WIFI POE AI Auto Tracking Movement Range(Pan): 0°-360°

Outdoor Camera 8MP 5MP 4G Sim Card WIFI POE AI Auto Tracking Rechargeable Battery: none

Item Name: 30x Zoom PTZ IP Camera

Resolution: 5MP: 2560x1920 / 8MP:3840x2160

Lens: 30X(20X Optical+10X Digital zoom)

LEDs: 6pcs Array LEDs. 80m IR Night Vision

Support: Support Two Way Audio (With Speaker)

Microphone Range 15m: Loudspeaker Range 60m

1 TF card slot: Up to128G(optional choose)

Support iPhone,Android APP: CamHipro

Housing Material: Metal,Waterproof IP66

Network: WIFI/4G/POE+wifi Optional





8MP / 5MP 30X Zoom AI Auto Tracking PTZ WIFI 4G Security Camera





Three Modes Optional

4G Camera / WIFI Camera / POE WIFI Camera Three Version Options



5MP / 4K 8MP Ultra HD Resolution

High quality 4K 8MP image , bringing you a smooth and shocking ultra-high definition experience.





AI Human Tracking Auto Zoom

The camera will adjust the pan/tilt rotation and zoom in automatically,

capturing clear monitoring targets and auto-tracking moving human,

and push alerts via email or notifications to your phone.









30X Zoom (20X optical zoom+10X Digital zoom)

you can zoom in or zoom out to watch the far or close objects as you need .







Real Two Way Audio

Built-In Microphone, Support Two Way Audio Talk Back (With Speaker).

Talking with people outdoor through the app for a more convenient life.







Pan Tilt Rotation

Horizon: 0 To 355 Degree ; Vertical: 0 To 90 Degree







80m IR Night Vision

6Pcs Array Infrared LEDs. 80m IR Night Vision

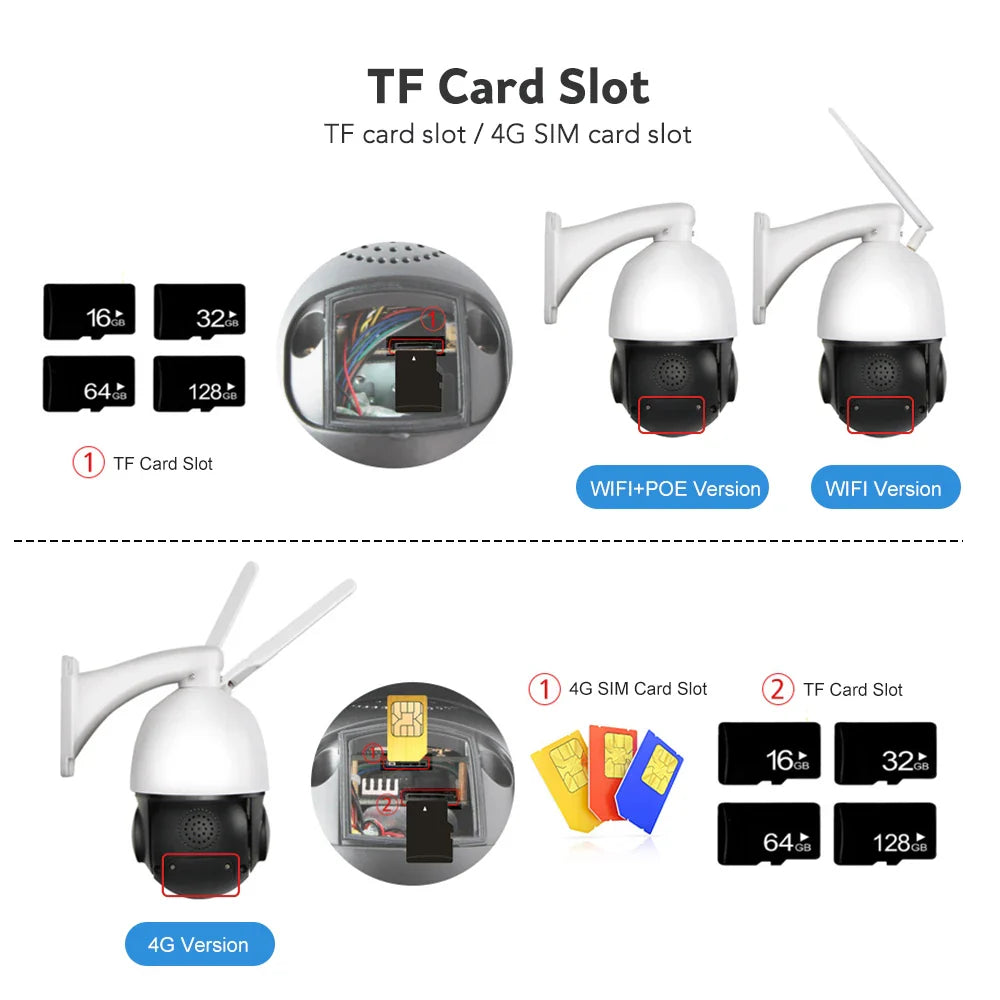

TF Card Slot / 4G Sim Card Slot

TF Card is optional choose , support max up to 128GB TF Card











AI Humanoid/Motion Detection& Alarm Linkage



With improved the human detection function, the camera will intelligently detect human and reduce 95% of false alarms caused by rain, wind, plants, etc,Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,

Alarm Write Pictures And Videos To TF Card, Alarm Message Push.





AI Intelligent Detection

Humanoid Detection / Vehicle Detection / Pets Detection

(For 8MP Camera only)



Preset Position Patrol

Support 8 Preset Points, Set up Preset Position and Patrol Between Them to Protect Your Home Like a Patrol Officer.

Zoom Lens Status Can Be Saved During The Preset.



Mobile App Support

Provide Android & IOS APP (CamHipro) And Professional CMS PC Client Software









Waterproof IP66

Metal Housing Material, Outdoor Use, Waterproof IP66





Product Details





4G Camera Connection





WIFI Camera Connection







WIFI POE Camera Connection







Features :



Wifi Version : Support Dual-Band Wi-Fi,2.4GHz and 5GHz WiFi IEEE802.11b.802.11g. 802.11n Draft



Support AI Human Feature Tracking&Automatically Zoom



Support Vehicle / Pets Detection(For 8MP only)



8MP 5MP 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital)

Support Wifi/4G/POE+WIFI (Depends on the models you choose,See Detail on Specification )

Support HD 5MP 8MP High quality resolution

6pcs Array Infrared LEDs. 80m IR Night Vision

Built-in Microphone&Speaker,Support Two Way Audio Talk Back

Microphone Effective Range 15 Meters

Loudspeaker Effective Range 60 Meters

Support TF card, up to 128G(Don't included TF Card)

Pan tilt rotation, horizontal:355° & vertical:90°Ø

Support P2P, view & anywhere & anytime

Elegant outline and easy installation

Provide android & ios APP (CamHipro) and professional CMS PC client software

Support 8 preset points ,  zoom lens status can be saved during the preset

Support Cruise Zoom /Auto Tracking AI Human Detection

Metal Housing Material,Outdoor Use,Waterproof IP66

Specification :

Products Model	HX-W54F5MP	HX-W54F8MP	HX-4G54F5MP		HX-4G54F8MP	HX-W54F8MP-P
Effective pixels	5MP(2560x1920)	8MP(3840x2160)	5MP(2560x1920)		8MP(3840x2160)	8MP(3840x2160)
Operating system	Embedded Linux OS
CMOS Sensor	1/2.8"
Lens interface type	M12
Lens	30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital)
View angle	68.5°-4.2°
Min.illumination	0.05 Lux  / 0 Lux(IR on)
Day&Night mode	Auto IR-CUT
Night vision distance	6pcs Array Infrared LEDs. 80m IR Night Vision
Video compression Standard	H.264 Main Profile/H.264 Baseline
Video streaming	Dual streaming
Video resolution	First stream:2560x1920 or 2560x1440
	Second stream:800x600 or 800x480
	JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176)
Video code rate	32 to 8192Kbps. supports constant bitrate/variable bitrate
Video frame rate	15fps(PAL 50HZ/NTSC 60HZ)
Audio	Audio compression standard: G.726/G.711
	Audio code rate: Rate adaptive
	Audio Input: Support, built-in Microphone
	Audio Output: Support Two Way Audio Talk Back(With Speaker)
Image settings	Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement	Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
Audio function	Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)
Motion detecting	Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage	Alarm send pictures to the specified mailbox,
	alarm upload pictures and videos to the FTP server,
	alarm write pictures and videos to Micro TF card, alarm message push
Privacy mask	Maximum support 4 users to simultaneously browse
OSD	Support camera name, date and time information superimposed
User management	Supports user and rights management
Simultaneous viewers	maximum support 12 users to simultaneously browse (each stream supports 4 users)
Network protocol	TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,
	FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
Connection protocol	Support ONVIF 2.1(backward compatible)
Network Support	2.4 GHz  to  2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft			GSM 900/1800 MHz UTRA FDD Band I/VIII E-UTRA FDD Band 1/3/7/8/20/28 E-UTRA TDD Band 38/40/41
Wireless Security	64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
Transmission rate	11b: 11Mbps,11g :54Mbps,11n :135Mbps
Rotation angle	Horizon:0° to 355°. Vertical: 0° to 90°
Horizontal speed	1° to 40°/S
Vertical speed	1° to 20°/S
Preset	Support 8 preset points ,  zoom lens status can be saved during the preset
Cruise Zoom	Support Cruise Zoom/Auto Tracking Zoom In
Power interface	1 5.5mm power interface
Ethernet	1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
TF card Slot	1 TF card slot. up to128GB (Don't included TF Card)
Reset button	Support(On the side of  the TF Card Slot)
Power supply	DC 12V 3A
power	Day: 3W;  Night: 12W
Operating temperature	-20 to +60 degree
Operating humidity	10% to 95%
Material	Metal Housing ,Outdoor Use,Waterproof IP66
Installation	Rack mounting
Size(mm)	239*137*215
Weight(kg)	1.45kg
Package Size(mm)	295*285*160
Package Weight(kg)	2.15kg





Packing List:
1*Dome Speed IP Camera Built-in Microphone&Speaker (TF Card Optional Choose)
1*DC 12V 3A Power Supply
1*Manual
1*Screws Bag
1*Antenna
